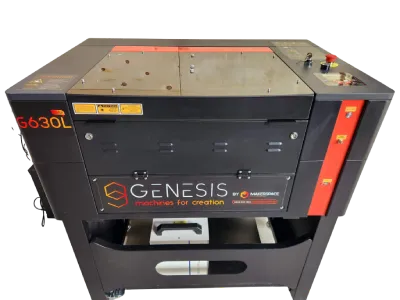

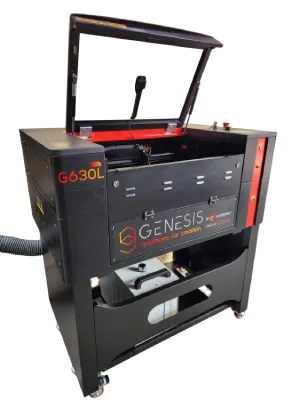

G630L:GEN2 GENESIS CO2 Laser Cutter/Engraver


This is our smallest fully-featured glass-tube CO2 laser cutter – strong chassis and high quality components & easy to use control system just like our larger units. Ideal for schools, hobby, jewellery makers etc etc.

Our G630L:GEN2 comes standard with a 50W laser tube making it capable of cutting up to 6mm MDF & 5mm Acrylic etc. This wee laser cutter is just like its big brothers, only smaller!

The GENESIS "machines for creation" G630L:GEN2 laser cutter/engraver is our smallest but fully-featured laser cutter. It has all the functionality of the larger models but in a much more space-efficient package. Being a desktop machine it's perfect for any areas with smaller door access such as classrooms and offices.


  • Door mounted camera system for convenient visual positioning. Note: utilisation of the the camera system requires Lightburn software
  • Engraving speeds of up to 900mm/sec! - that's 2x faster than most other laser cutters originating from China.
  • Cut speeds are also 2x faster with up to 500mm/sec possible, though this is material dependent of course.

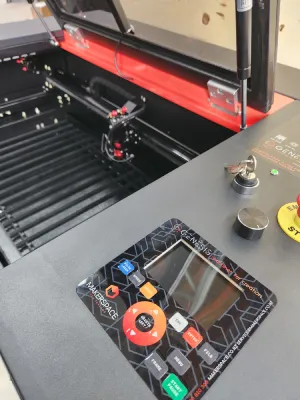

  • Our innovative dual red dot pointer focusing system - enables focussing from the control without the need for "focus blocks" or cumbersome autofocus apparatus.
  • Height adjustable bed with 140mm of Z axis travel, enabling larger objects to be engraved or the optional rotary engraving attachment to be fitted.

Our GENESIS "machines for creation" are built with premium components for ease of maintenance and years of reliable engraving and cutting.

These machines and accessories are 100% safe for use in the classroom, home or industrial environment, the cabinet & doors are all lockable and fully earth bonded, have built in RCD devices and operate off a standard single phase, 230V, 10A kettle-type lead.

Suitable materials for cutting or etching:

  • Paper/card stock
  • Plywood
  • MDF
  • Leather
  • Felt
  • Rubber
  • Acrylic
  • Glass (etch only)
  • Natural textiles/fabrics
  • Many more

Included in the package is:

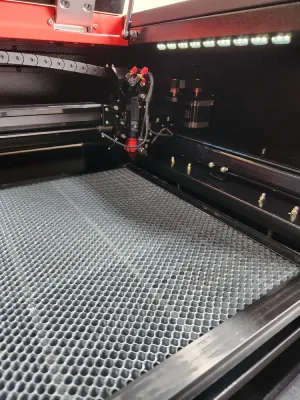

  • 1 x G630L:GEN2 50W laser cutter with fixed honeycomb and alloy slat beds sized to 600x300mm
  • 1 x built in air pump - oil-less & quiet.
  • 1 x Genuine S&A CW3000 passive chiller.
  • 1 x built in extraction fan
  • 1 x Digital installation media for simple and powerful laser processing software
  • 1 x Toolkit containing maintenance and servicing tools

This machine is also available for rental and lease/lease to own! Please contact us for details.

Additional information

Weight 80 kg
Dimensions 730 × 950 × 500 cm
Laser type

Sealed CO2 gas type analogue glass tube, 10600nm wavelength.

Laser power

50 Watt

Bed size

600 x 300 millimetres

Input Voltage

220-240v 50/60hz AC single-phase domestic

Extraction required

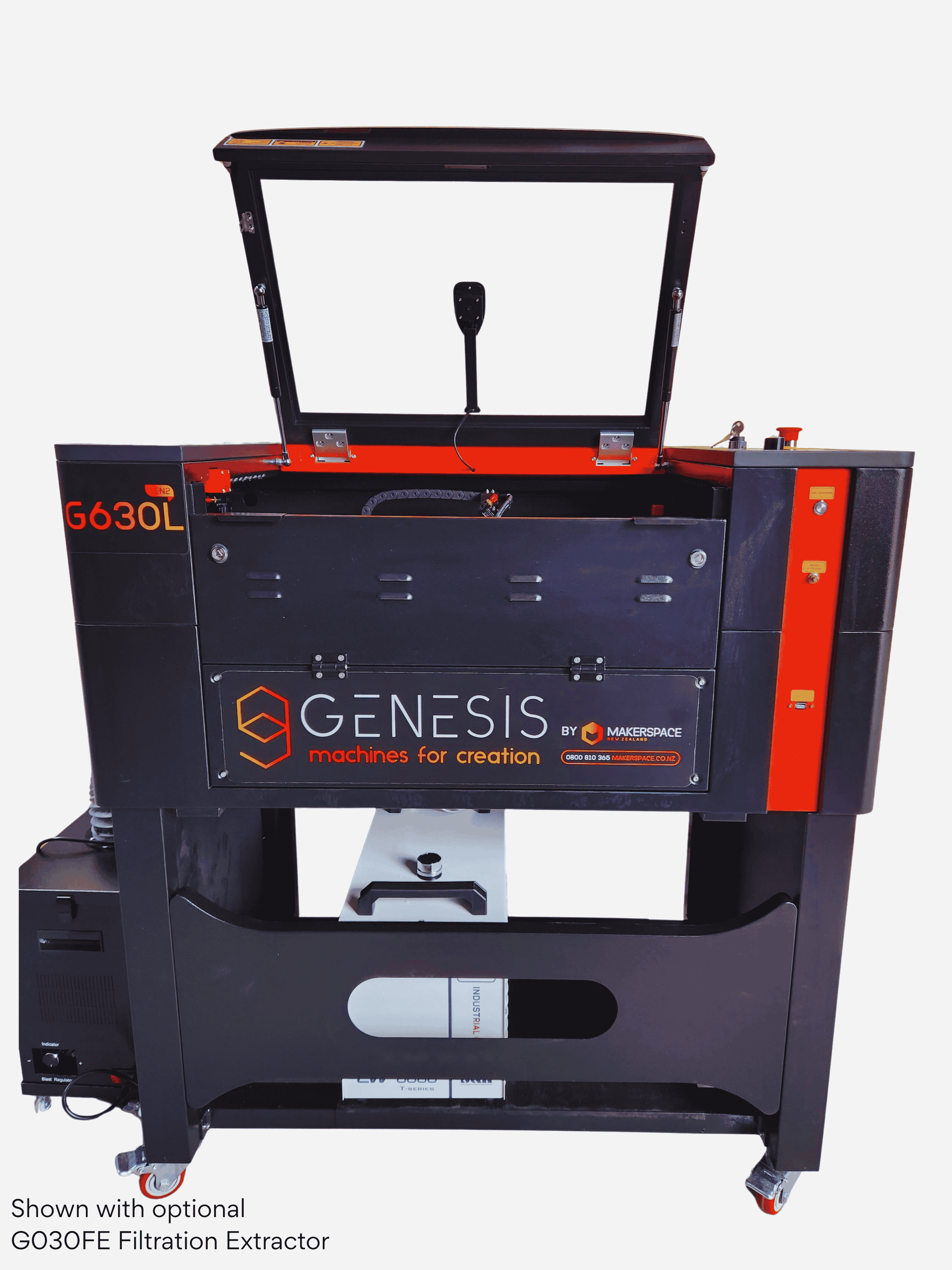

Built in extractor fan. Requires external venting or active filtration via compact G030FE filter unit (optional).
