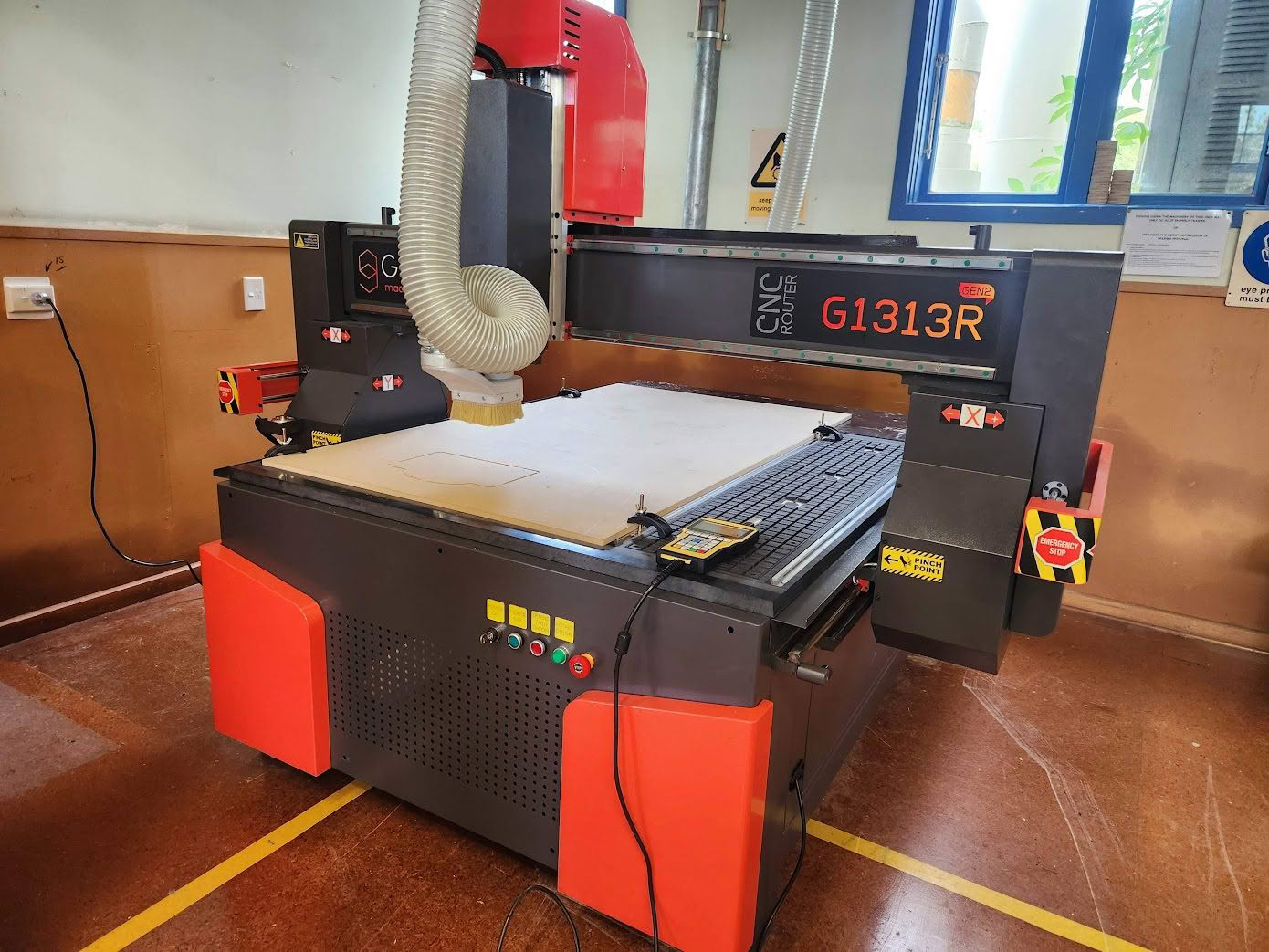

G1313R GEN2 GENESIS 1300x1300mm CNC Router

$17,790.00

The G1313R offers great performance with quality specification for reliability and accuracy.

Featuring a powerful drive system via quiet helical rack/pinion and stepper drive motors in X-axis and Y-axis with a ball-screw drive for Z-axis (spindle up/down) drive. The bed is supplied ready for vacuum and with t-slots for flexible hold down options (vacuum pumps are optional and not incl in this pricing)



Category:

Description

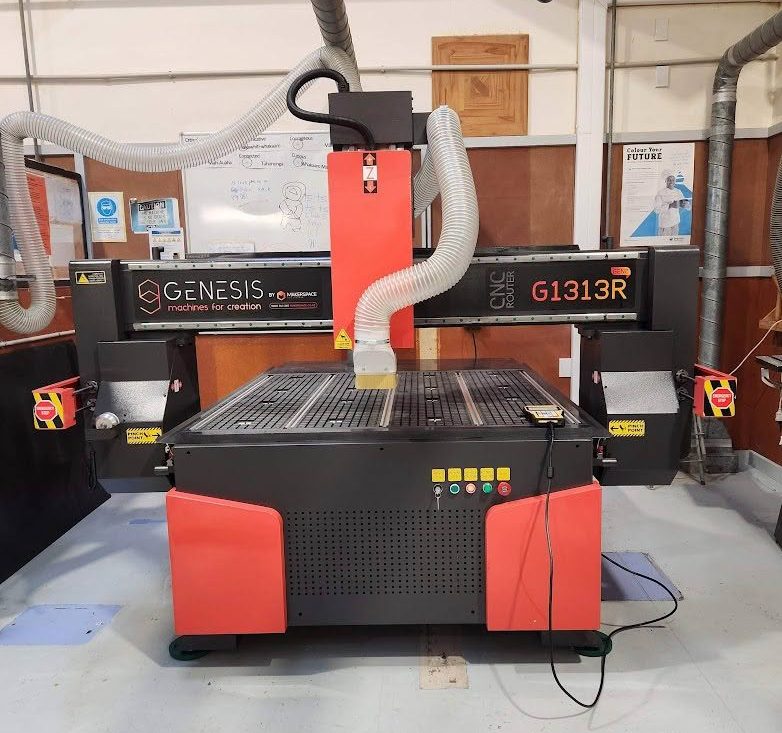

GENESIS “machines for creation” – G1313R CNC Router.
Effective working area: 1300*1300, Z axis travel 300mm (equates to roughly 250mm machinable height depending on cutter used etc)

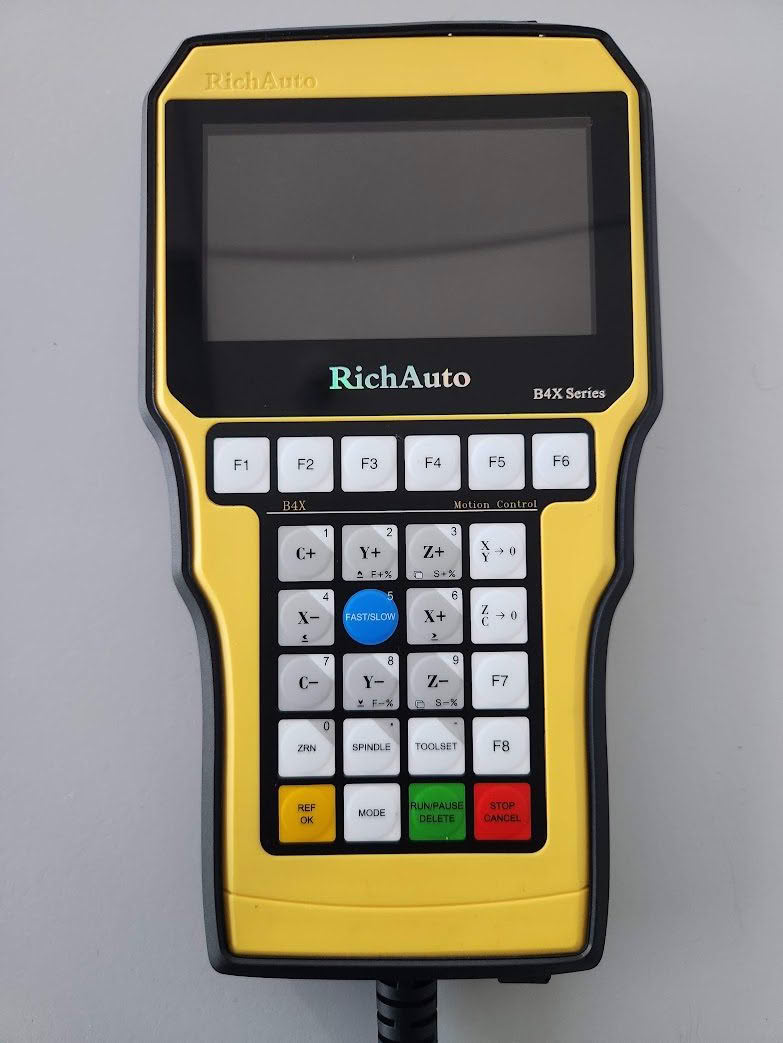

New Large Screen – RichAuto B41 control system, handheld pendant controller – offline file loading via USB drive
Compact under bed (incorporated) control cabinet.
2.2kW Air Cooled Spindle with ER25 collet system
2.2kw VFD
T-slot & Vacuum ready working table (vacuum pumps optional & additional)
20mm Precision ground square linear rails & bearings
Taiwanese precision ground ball screw on Z axis
Dust Extraction hood for spindle
E-Stop bumpers on gantry motor covers
Heavy duty steel frame & cast table frame

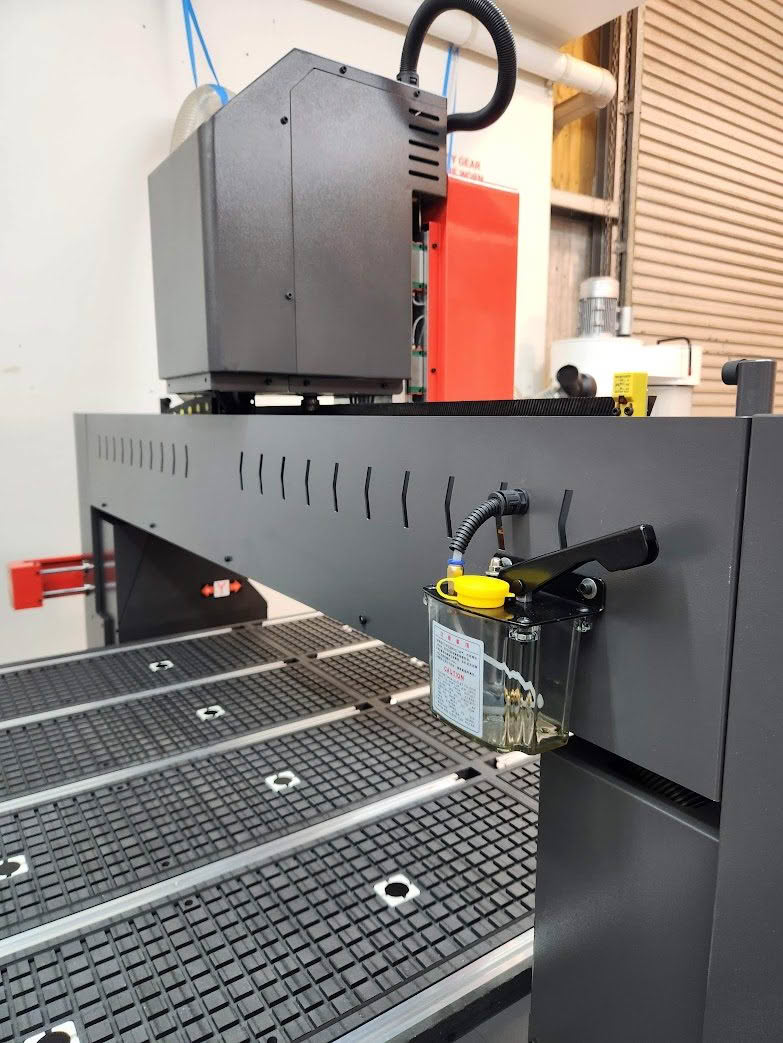

Manual-hand pump oiler – reticulated to each bearing.
NEMA 34 5.0A stepper motors/drives 10,000mm/min expected velocity.
Gantry Mounted tool height sensor – single button tool height setting
Includes a tool box with:
– collet spanners
– bed clamps
– a random selection of cutters & collets
– spare vacuum bed gasket
240Vac 50HZ ~ 15A single phase machine
Built in power monitor/isolator in the event of surge or sag of the supply power.

Suitable materials for machining:
Solid Woods
Plywood
MDF
Acrylic/plastics
Foams, Tooling Board
Aluminium, Copper
Common signage materials

Approx. Overall Machine Dimensions:
2100mmW x 1950mmD x 1900mmH

OPTIONAL ACCESSORIES/UPGRADES:

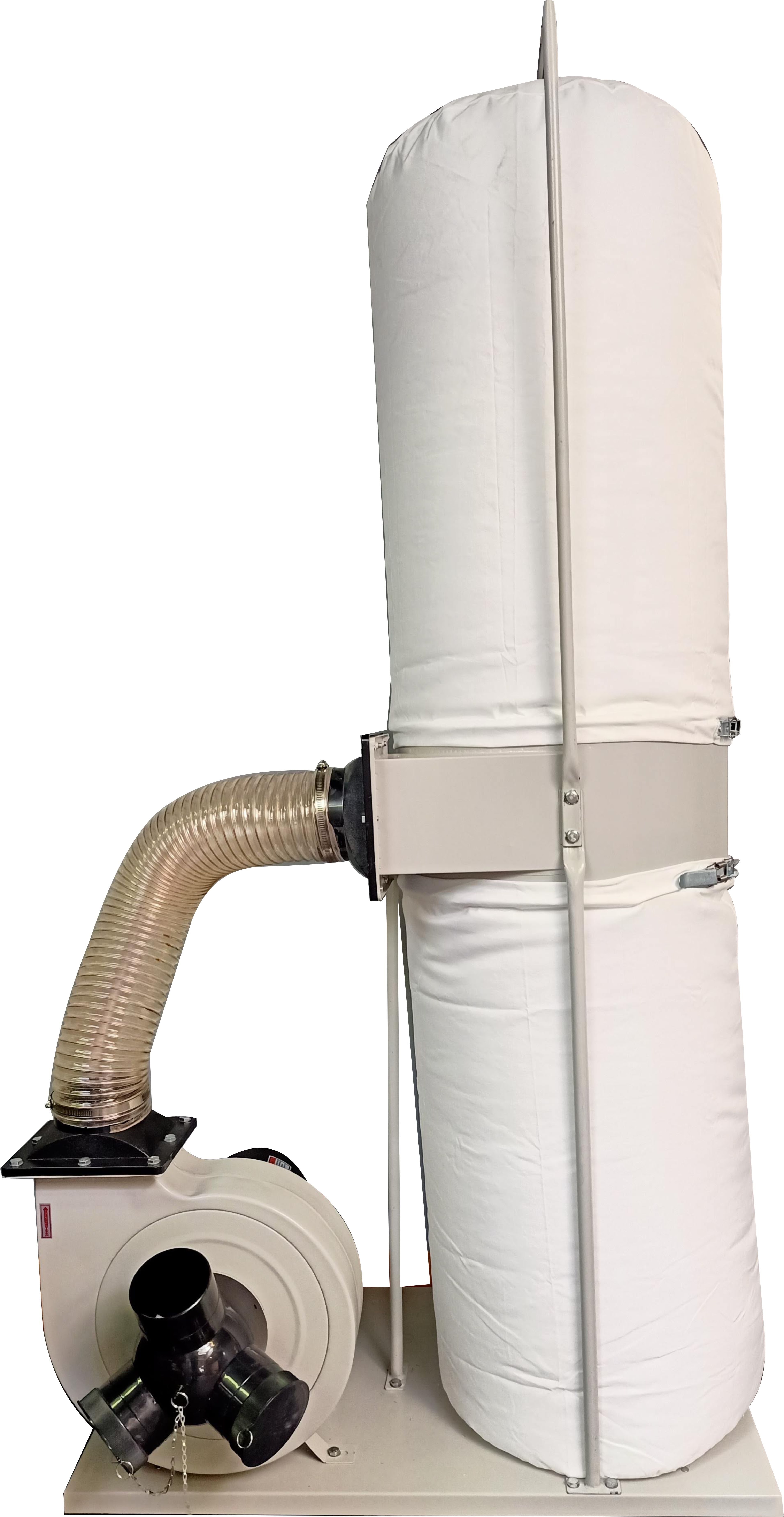

  • 2.2kW Advanced Cyclonic Dust Collector with HEPA filtration – enabling a virtually dust free machining environment. $1,265 +GST when purchased with the G1313R:GEN2 (usually $1,490 + GST)
  • Dual 2.2kW Vacuum Pump (side channel blower type), Vertically stacked with intake filters, adjustable relief valves and stainless steel exhaust silencers. $2200 + GST when purchased with the G1313R:GEN2 (usually $2450 + GST)
  • V-Carve Pro Software for both CAD & CAM operations – by Vectric Software UK.
    2D & 2.5/3D CAD/CAM/Post processor. Up to 3 PCs* (40 PC’s in education installations) – Win64 OS. *for personal license
  • 80mm rotary engraving attachment (4th axis) – switched between X axis via control panel button. $1240 + GST when purchased with the G1313R:GEN2 (usually $1590 + GST)



Additional information

Weight 600 kg
Dimensions 180 × 150 × 180 cm
Spindle type

Water cooled 3-phase 2.2/3kW ER16-ER20 (upto 12 .7mm or 1/2" shank in 0.5mm steps) Air cooled 2.2kW-9kW ER16-ER30
Bed type

Alloy T-slot bed with optional urethane rubber protection Machined Urethane vacuum bed with additional T-slot hold down (ask for details)
Cutting area

1220mm x 1220mm x 200mm (Z)
Drive type

Helical Rack/pinion drive, dual stepper on Y-axis, single stepper on X (max travel speed: 18000mm/min) 25mm Ball-screw on Z-axis (max travel speed: 5000mm/min)
Control System

USB-loaded DSP offline control (no local PC required)
Command code

G-Code (we have tested these machines with V-Carve pro and Autodesk Inventor HSM and they run superbly)
Guide rails

Hi quality Taiwanese square linear guides on each axis- not cheap round rails.
Input voltage

220v AC single-phase domestic, 15A max (not including extraction)
