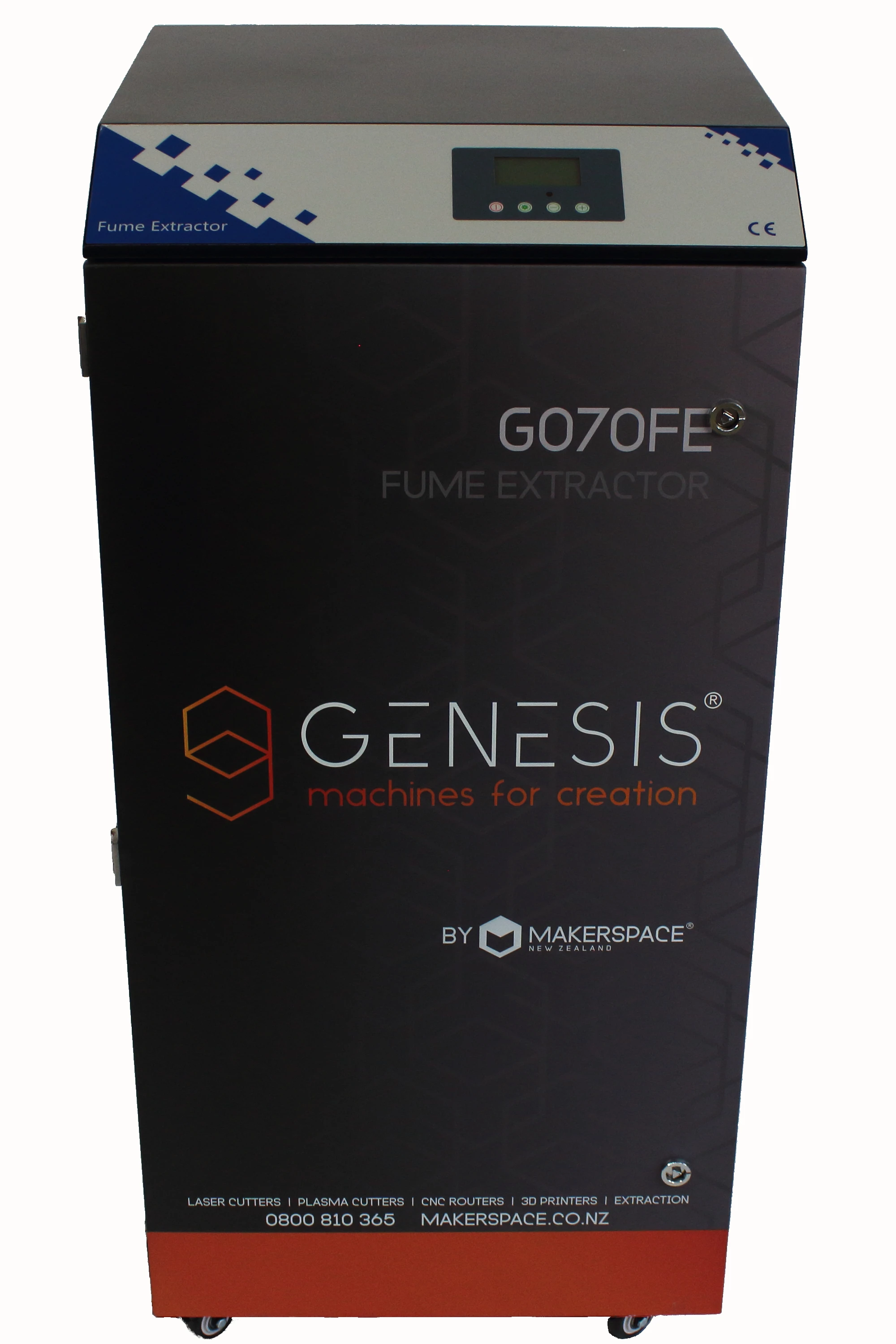

G070FE GENESIS – Advanced Fume Extractor 700m3/hr

$4,090.00



600W variable speed blower system suitable for fume filtration and dust collection for both glass tube and Solid State Laser cutting/engraving systems.

To suit 700x500 to 900x600 bed laser cutters/engravers.

Four stage filtration and purification is designed to ensure filtration and return cleaned exhaust back to the room:

Primary filter Medium Efficiency Filter Main HEPA filter/Gas filter all of which can be replaced individually to extend each filter’s life and reduce filter ongoing replacement.
Stage 1 - F5 Primary filter removes larger and heaviest smoke & dust particles >=5Micron.
Stage 2 - F8 Medium efficiency pleated filter removes large particles / smoke / dust >=1Micron
Stage 3a - H13 Class HEPA filter removes the smallest of smoke particles >=0.01Micron
Stage 3b - Activated Carbon gas filter to absorb smells & gas >99.7% efficient.

Chassis mounted on moveable castors for easy servicing, comes with 1 x full set of filters & an additional primary (F5) filter pad.

  • Dimensions: 510x560x1090mm
  • Power consumption: 600W
  • Maximum airflow: 700m³/hr
  • Air pressure: 3500Pa
  • Maximum noise: 66dBA
  • Connection port diameter: 150mm
  • Weight: 85kg



Note: while the exhausted air can be vented back into the room, there can be a faint smoke smell present. Additionally it is after all stale air and our suggestion is that the exhausted air be ducted outside if possible.

Additional information

Weight 140 kg
Dimensions 80 × 80 × 160 cm
Weight

100kgs

Dimensions

Height – 1100mm Width – 600mm Depth – 600mm

Intake Diameter

150mm (standard)

Air Volume

1500m3/hr @ 2300PA

Motor Power

1200W

Noise Level

<65dBA
